DAZ Series

DAZ 4-2 – DAZ 1021-2 Series

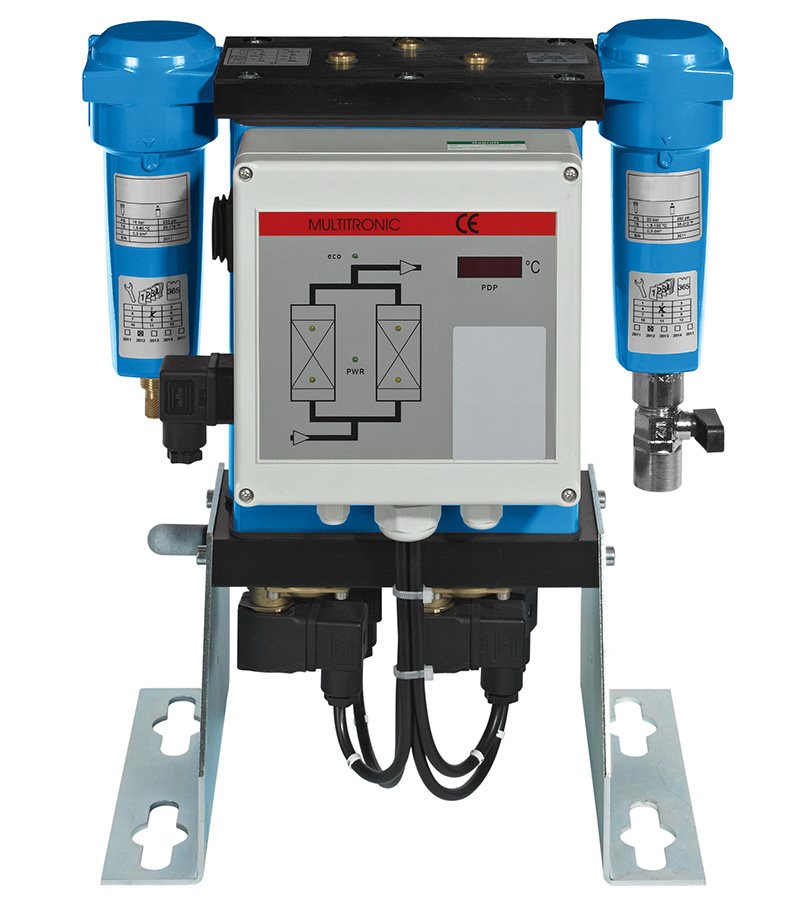

Adsorption dryers DAZ 4-2 to DAZ 1021-2 heatless with pre- and after-ﬁlters

Flow capacity: 8 – 6100 m³/h, 5 – 3587 cfm

Max. operating pressure: 10 bar and 16 bar, 150 and 230 psig

The all-in one package for dry compressed air: The ideal solution for compressed air pressure dew points below +3°C. The heatless BOGE adsorption dryers can reach dew points of -70°C (standard -40°C). The twin tower system allows regeneration simultaneously with the adsorption eliminating the need for any external power supply.

BOGE	Capacity		Dimensions	Connection	Weight
Type	m³/h	cfm	W x D x H mm	Connection	kg
DAZ 4-2	8	5	326 x 216 x 400	G 1/4	11,5
DAZ 5-2	15	9	326 x 216 x 575	G 1/4	15,5
DAZ 6-2	25	15	326 x 216 x 825	G 1/4	25
DAZ 8-2	35	21	326 x 216 x 1075	G 1/4	48
DAZ 9-2	56	33	495 x 300 x 1203	G 3/8	48
DAZ 11-2	72	42	495 x 300 x 1428	G 3/8	56,5
DAZ 14-2	86	50	495 x 300 x 1628	G 1/2	62,5
DAZ 18-2	105	62	820 x 480 x 1420	G 1	120
DAZ 26-2	145	85	820 x 480 x 1750	G 1	142
DAZ 36-2	200	118	660 x 480 x 1730	G 1	143
DAZ 46-2	255	150	630 x 530 x 1760	G 11/2	173
DAZ 61-2	350	206	790 x 585 x 1810	G 11/2	210
DAZ 71-2	420	247	820 x 605 x 1820	G 11/2	249
DAZ 101-2	620	365	860 x 635 x 1860	G 2	277
DAZ 126-2	750	441	950 x 640 x 2000	G 2	408
DAZ 161-2	940	553	1000 x 670 x 2020	G 21/2	510
DAZ 201	1200	706	1060 x 840 x 2075	DN 50	640
DAZ 261	1550	912	1270 x 900 x 2120	DN 65	830
DAZ 341	2000	1176	1350 x 990 x 2160	DN 65	955
DAZ 421	2500	1470	1530 x 1040 x 2210	DN 80	1075
DAZ 501	3000	1764	1600 x 1100 x 2255	DN 80	1500
DAZ 646	3800	2235	1875 x 1200 x 2385	DN 100	1990
DAZ 811	4850	2852	1925 x 1250 x 2660	DN 100	2410
DAZ 1021	6100	3587	2160 x 1565 x 2820	DN 125	2850
