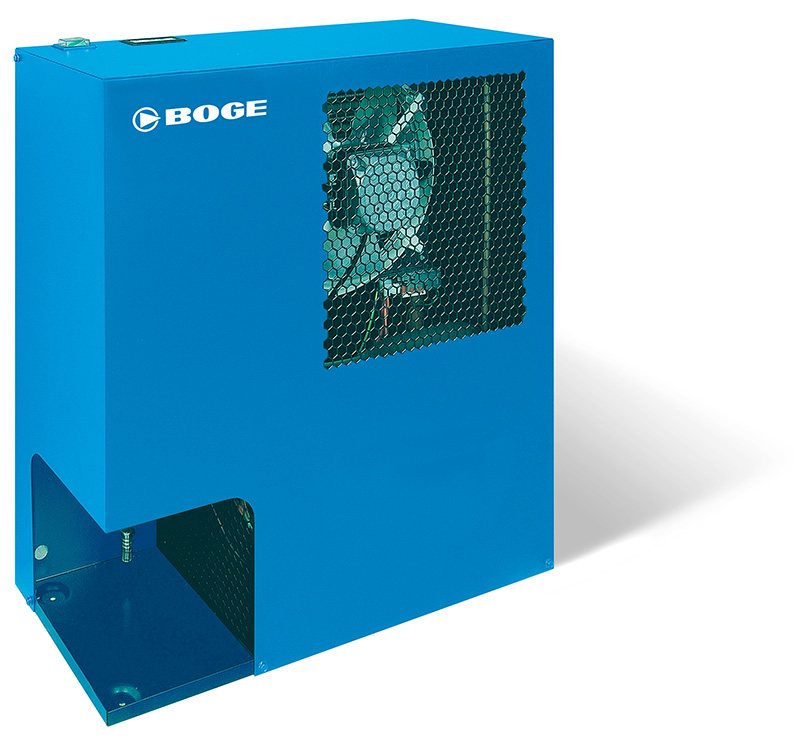

DS4-2 – DS100-2 Series

Flow capacity: 0.20 – 9.5 m³/min, 7 – 335 cfm

Max. operating pressure: 16 bar, 235 psig

The most efﬁcient method of drying compressed air: Compressed air is cooled to just above freezing point which means that water and oil aerosols contained in the air will condense. The two major cost factors involved are energy use and compensating for any pressure loss. The DS series incorporates particularly energy-saving components which markedly reduce these costs over the entire life of the compressed air system by exploiting the greatest saving potentials without sacriﬁcing reliability.

According to DIN ISO 7183, refrigerant dyers are designed for 7 bar operating pressure, an ambient temperature of 25C and an inlet temperature of 35C.

BOGE	Flow capacity			Max pressure	Pressure differential at full load		Electr. power consumption		Installed power		Compressed air connection	Cooling air required		Dimensions W x D x H	Weight
Type	m³/min	m³/h	cfm	bar	bar	psig	kW	HP	kW	HP		m³/h	cfm	mm	kg
DS 2	0,2	12	7	16	0	0,06	0,12	0,16	0,26	0,35	G 1/2	90	53	450 x 210 x 430	19
DS 4	0,4	24	14	16	0,02	0,22	0,13	0,18	0,26	0,35	G 1/2	90	53	450 x 210 x 430	19
DS 6	0,6	36	21	16	0,03	0,45	0,17	0,23	0,26	0,35	G 1/2	90	53	450 x 210 x 430	19
DS 9	0,9	54	32	16	0,03	0,46	0,25	0,34	0,35	0,48	G 1/2	220	129	500 x 210 x 506	24
DS 12	1,2	72	42	16	0,06	0,8	0,25	0,34	0,35	0,48	G 1/2	220	129	500 x 210 x 506	24
DS 18	1,8	108	64	16	0,1	1,47	0,49	0,67	0,59	0,8	G 3/4	270	159	520 x 225 x 565	27
DS 22	2,2	132	78	16	0,17	2,49	0,57	0,78	0,76	1,03	G 3/4	380	223	520 x 225 x 565	31
DS 30	3	180	106	16	0,26	3,76	0,78	1,06	0,92	1,25	G 3/4	550	323	520 x 225 x 565	35
DS 40	4	240	141	16	0,14	1,99	0,71	0,97	0,95	1,29	G 1 1/2	540	318	555 x 425 x 600	52
DS 50	5	300	177	16	0,23	3,34	0,85	1,16	1,1	1,5	G 1 1/2	760	447	555 x 425 x 600	58
DS 60	6	360	212	16	0,32	4,67	1,05	1,43	1,37	1,86	G 1 1/2	1100	647	555 x 425 x 600	60
DS 75	7,5	450	265	14	0,13	1,89	0,9	1,2	1,4	1,9	G 1 1/2	2830	1666	703 x 562 x 945	83
DS 95	9,5	570	335	14	0,21	3,05	1,38	1,88	2	2,72	G 1 1/2	2830	1666	703 x 562 x 945	83

According to DIN ISO 7183, refrigerant dyers are designed for 7 bar operating pressure, an ambient temperature of 25C and an inlet temperature of 35C.
